Truss & Structures

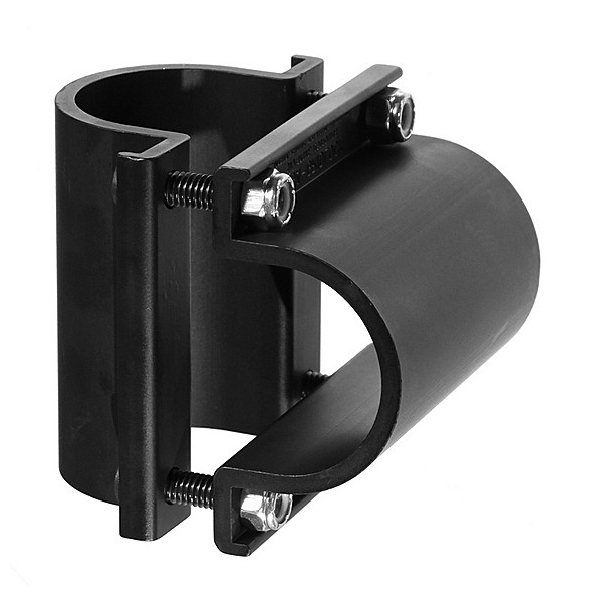

Mega Grid lock

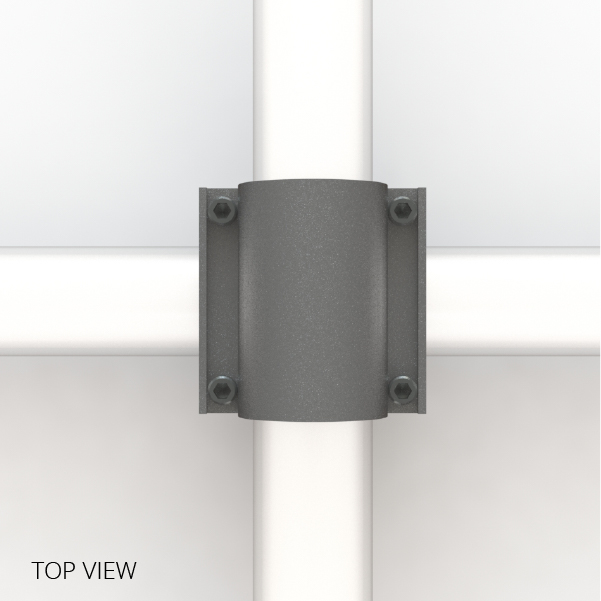

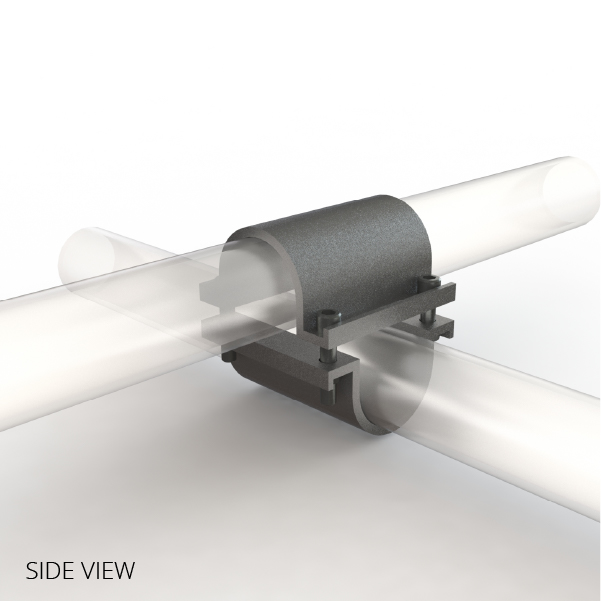

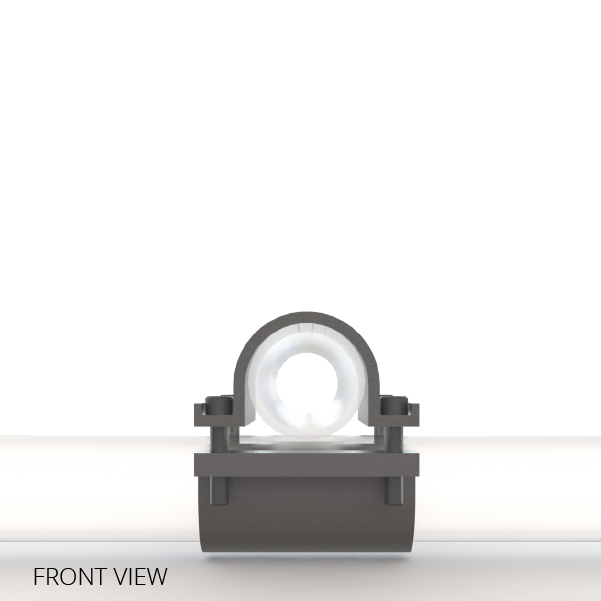

The Mega-Gridlock is intended for a permanent installation in theatres and studios. It creates a 90 degree connection between two pipes that are overlapping. As a wrench, the side grooves prevent the nut from twisting during installation.
Any combination of 1-1/2" pipes (1.9" OD), 1-1/4" pipes (1.66" OD), and 2" OD Tubes can be fastened (tight fit on 2" OD tube).
more details below

FEATURES:
The Standard configuration comes with:
  • Minimum Size: 1.25" pipe, (1.66" OD)
  • Maximum Size: 1.5" pipe, (1.90" OD), 2" OD tube
  • Working Load Limit: 1250 lbs 568kg
  • Dimensions: 3.65" × 3.65" x 4.375" tall max
  • Weight: 1.03 lbs
Made in Canada
SHOWSDT Pipe & Tension Grids Mega Grid Lock overlapping pipe
Model N°
MGM Mega-Gridlock Silver
MGB Mega-Gridlock Black Anodized
MGMSS Mega-Gridlock Stainless Steel Hardware, Silver
MGW Mega-Gridlock White Powder Coat
